Decoilers for sheet width from 500 to 1250mm, loading capacity from 500 to 4000kg

Our offer consists of single, double band and console decoilers and rollers for sheet metal. All the decoilers are equipped with an adjustable disc break and a handle for spinning the mandrel. The handle is meant for easy fastening and unfastening of the mandrel.

SINGLE BAND DECOILERS

RAZ-END 1250/4

Technical data

	RAZ-END 1250/4
Weight	160 kg
Working width	1.250 mm
Inner φ	480-530 mm
Loading capacity	4.000 kg

RAZ-END 1250/3

Technical data

	RAZ-END 1250/3
Weight	150 kg
Working width	1.250 mm
Inner φ	480-530 mm
Loading capacity	3.000 kg

RAZ-END 1250/2

Technical data

	RAZ-END 1250/2
Weight	130 kg
Working width	1.250 mm
Inner φ	480-530 mm
Loading capacity	2.000 kg

RAZ-EN0 1250

Technical data

RAZ-EN0 1250
Weight	170 kg	160 kg	140kg
Working width	1.250 mm	1.250 mm	1.250 mm
Inner φ	480-530 mm	480-530 mm	480-530 mm
Loading capacity	4.000 kg	3.000 kg	2.000 kg

RAZ-EN 500

Technical data

	RAZ-EN 500	RAZ-EN 800	RAZ-EN 1500
Weight	100 kg	120 kg	180kg
Working width	500 mm	800 mm	1.500 mm
Inner φ	480-530 mm	480-530 mm	480-530 mm
Loading capacity	2.000 kg	2.000 kg	3.000 kg

RAZ-R 1250

Technical data

	RAZ-R 1250
Weight	160 kg
Working width	1.250 mm
Inner φ	480-530 mm
Loading capacity	2.000 kg

DOUBLE BAND DECOILERS

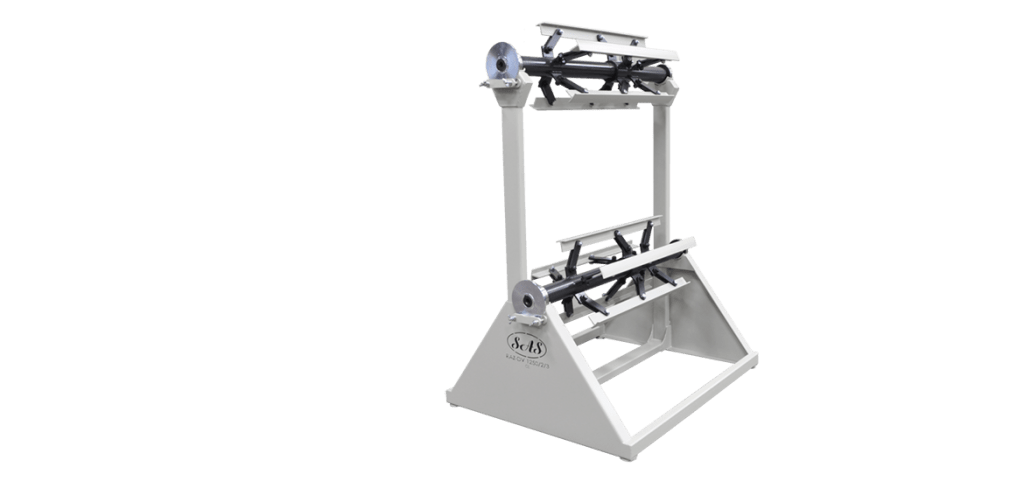

RAZ-DV 1250/2

Double band un-coiler with a disc for 1250mm width plate.

Technical data

	RAZ-DV 1250/2
Weight	350 kg
Working width	1.250 mm
Inner φ	480 – 530 mm
Lower loading capacity	3.000 kg
Upper loading capacity	2.000 kg

RAZ-DV 1250/3

Double band un-coiler with a disc, 1.250 mm up to 3 t

Technical data

	RAZ-DV 1250/3
Weight	330 kg
Working width	1.250 mm
Inner φ	480-530 mm
Lower loading capacity	3.000 kg
Upper loading capacity	3.000 kg

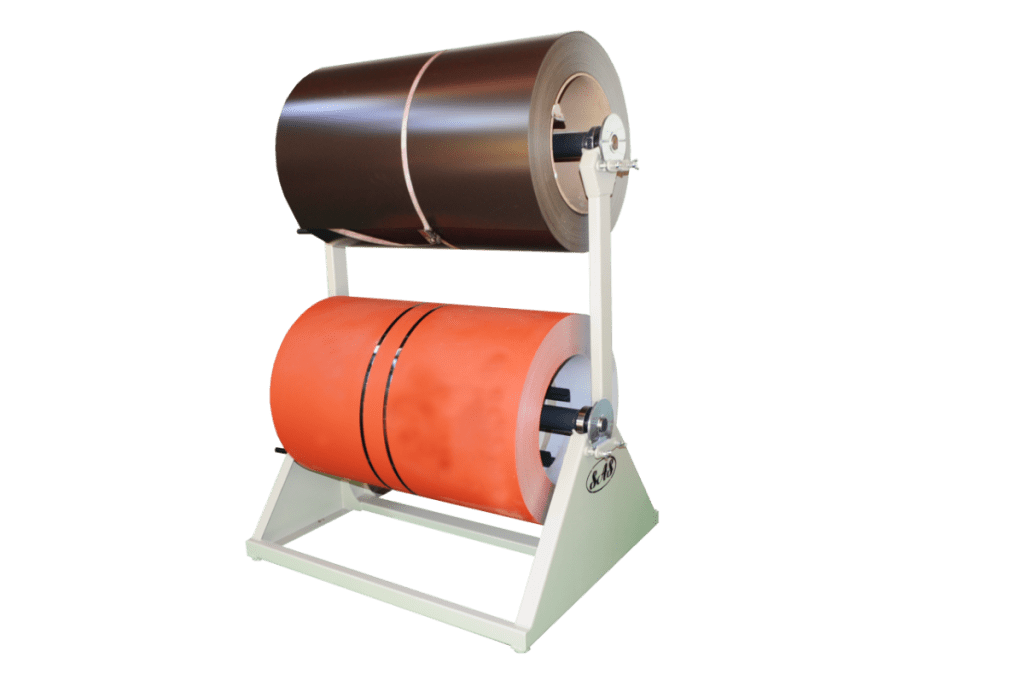

RAZ-DV 1250/4

Double band un-coiler with a disc, 1.250 mm up to 4 t

Technical data

	RAZ-DV 1250/4
Weight	350 kg
Working width	1.250 mm
Inner φ	480-530 mm
Lower loading capacity	3.000 kg
Upper loading capacity	4.000 kg

RAZ-DV 500

Technical data

	RAZ-DV 500
Weight	310 kg
Working width	500 mm
Inner φ	480-530 mm
Lower loading capacity	3.000 kg
Upper loading capacity	3.000 kg

CONSOLE DECOILERS

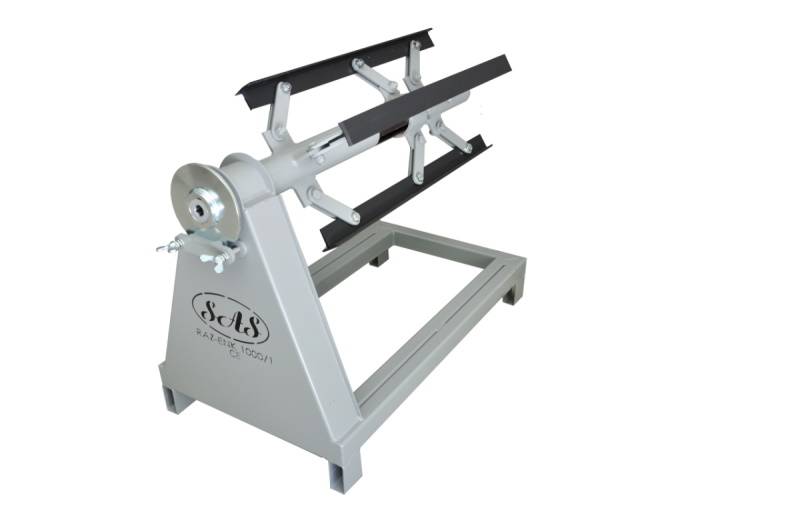

RAZ-ENK 1000

Single band console decoiler 1000 mm

Technical data

	RAZ-ENK 1000
Weight	130 kg
Working width	1.000 mm
Inner φ	480-530 mm
Loading capacity	1.000 kg

RAZ-ENK 500

Single band console decoiler 500 mm

Technical data

	RAZ-ENK 500
Weight	115 kg
Working width	500 mm
Inner φ	480-530 mm
Loading capacity	1.500 kg
