Manual Vertical milling machines Series: F2V-R, FGV, FNGJ
Table sizes: 300×1300, 360×1400, 800×400, 900×500 mm
Table loads: 200,250,350 kg
Knee-Type milling machine F2V-R
Knee-type milling machine F2VR is designed for milling and drilling operations of small and medium-size components of up to 200 kg weight occurring in all branches of the engineering production.
Milling head with the spindle seated in the slide sleeve can be inclined in the longitudinal plane of the table.
The wide range of speed and feeds enables effective milling of all metals with tools made from a high speed steel or a hardmetal.
Using of the optional equipment from our variety enlarges technological possibilities of the machine.
ADVANTAGES:
- High torque on spindle
- Continuous set-up feeds in 3 axes by means of a frequency convertor
- Stepless regulation of spindle revolutions by frequency convertor in two revolution ranges
- Spindle in shifting quill efficient for comfortable drilling
- Large working stroke of the quill
- Rough, fine and maschine shift-out of the spindle quill
- Possibility of horizontal machining – swivelling of spindle by 90°
- Simple operation
- Central lubrication system
- Compact maschine design
- Modern styling and consummate surface finish through oil-resistant varnishes
MACHINE EXECUTION:
Standard execution:
- Table size 300 x 1300 mm
- Frequency convertor in spindle drive
- Machine shift-out of the quill
- Automatic feeds X,Y,Z (stepless) – in one step
- Handwheels in axes X,Y with measuring dials – dividing 0,05 mm
- Handwheel in axis Z with measuring dial – dividing 0,02 mm
- Electrical equipment for 400V/50 cycles
- Paint of machine – blue/grey RAL 5010/RAL 9002
- Work lighting
- Working space guard
- Safety guard
Special execution:
(must be required in the order)
- Inch execution
- Other electrical standards than 400V/50 cycles
- Paint in other colored shade
- Machine equipped with digital read-out
- Pneumatic tool clamping
- Stepless feeds in two steps through frequency convertor, two steps gear box
Technical data
| Table size | mm | 300×1300 | ||
| Clamping slots | number | 5 | ||
| Width and spacing | mm | 14×50 | ||
| Maximal table load | kg | 200 | ||
| Travel – longitudinal | X | mm | manual/machine 840/820* | |
| – cross | Y | mm | manual/machine 376/355* | |
| – vertical knee | Z | mm | manual/machine 420/400* | |
| One-step feeds – number of feed rates | stepless | |||
| – range | X,Y | mm/min. | 28-630 | |
| – range | Z | mm/min. | 8,5-196 | |
| One-step rapid traverse | X,Y | mm/min. | 1500 | |
| Z | mm/min. | 450 | ||
| Feeds in two steps – step | I. | II. | ||
| – range | X,Y | mm/min. | 10-200 | 200-1000 |
| – range | Z | mm/min. | 3-60 | 60-300 |
| Rapid traverse in two steps | X,Y | mm/min. | 400 | 2000 |
| Z | mm/min. | 120 | 600 | |
| SPINDLE | ISO 40 | |||
| Distance of spindle axis from frame guide ways | mm | 373 | ||
| Revolutions – stepless | r.p.m. | 60-4000 | ||
| Bilateral milling head swivelling | ± 90° | |||
| Motor power | kW | 3 | ||
| Quill shift out | mm | 125 | ||
| Machine shift-out of quill – number of rates | 3 | |||
| I. rate | mm/rev. | 35 | ||
| II. rate | mm/rev. | 71 | ||
| III. rate | mm/rev. | 140 | ||
| MACHINE | ||||
| Total power input | kVA | 12 | ||
| Weight | kg | 1550 | ||
| Floor space | mm | 2660×1760 | ||
| Height | mm | 2270 |

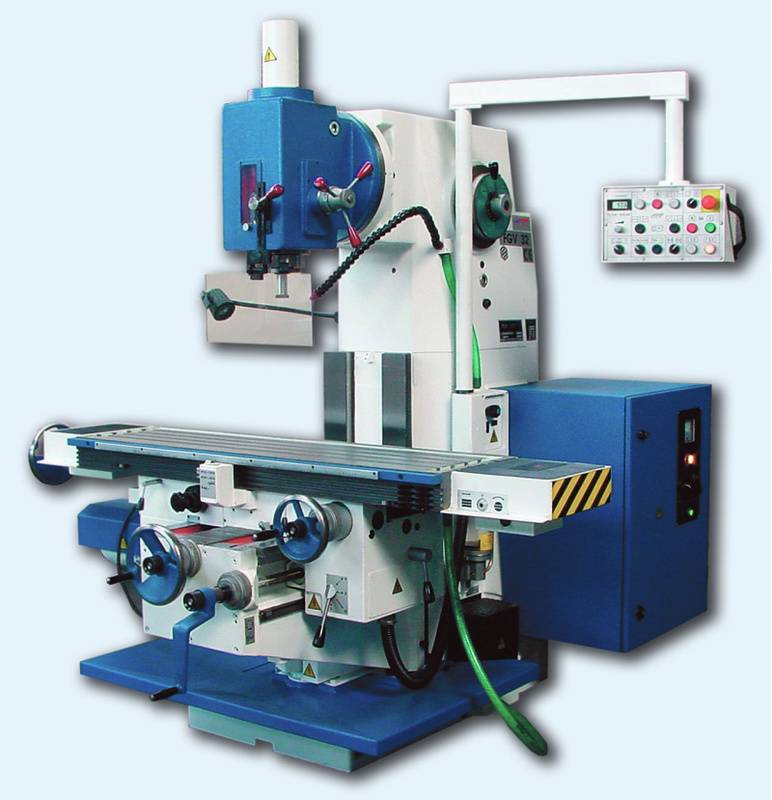

Vertical knee-type milling machine FGV 32
The FGV32 type is a high efficiency production milling machine with vertical spindle. It is designed for precision and productive milling of flat or box-section workpieces up to 250 kg weight occurring in the one-off or batch production.
The wide range of spindle speeds and feeds enables effective milling of all metals with tools made from a high speed steel or a hardmetal
Using of the optional equipment from our variety entlarges technological possibilities of the machine.
ADVANTAGES:
- high rigidity and geometrical accuracy
- stepless feeds in all 3 axes by means of a frequency converter
- hardened guideways
- swivelling spindle head with shifting quill
- climb-cut milling in longitudinal axis
- automatic working cycles in longitudinal axis with knee drop (Special execution)
- simple operation
- central lubrication systém (manually operated)
- compact machine design
- surface finish through oil-resistant varnishes
MACHINE EXECUTION
Standard execution:
- Table size 360 x 1400 mm
- Spindle with taper ISO 50
- Basis spindle speed range 31,5 – 1400 rpm
- Automatic feeds X,Y,Z (stepless)
- Handwheels in axes X,Y and Z with measuring dials – dividing 0,02 mm
- Drive for special attachment
- Climb-cut milling in longitudinal axis
- Electrical equipment for 400V/50 cycles
- Paint of machine – blue/grey RAL5010/RAL 9002
- Work lighting
- Working space guard
- Safety guard
Special execution:
(must be required in the order)
- Inch execution
- Spindle with taper ISO 40
- Automatic working cycles in longitudinal axis
- Knee drop
- Other electrical standards than 400V/50 cycles
- Paint in other colored shade
- Machine equipped with digital read-out HEIDENHAIN – 3 axes
- Increased spindle speed range 45 – 2000 rpm
- Pneumatic tool clamping
Technical data
| Table size | mm | 360 x 1400 | ||
| Clamping slots | – number | 4 | ||
| – width and spacing | mm | 18 x 63 | ||
| Maximal table load | kg | 250 | ||
| Travel | – longitudinal | X | mm | manual/machine 1020/1000* |
| – cross | Y | mm | manual/machine 320/300* | |
| – vertical knee | Z | mm | manual/machine 435/420* | |
| Feeds | – number of feed rates | stepless | ||
| – range | X,Y | mm/min. | 20 – 900 | |
| – range | Z | mm/min. | 5,7 – 250 | |
| Rapid traverse | X,Y | mm/min. | 1635 | |
| Z | mm/min. | 460 | ||
| SPINDLE | ISO 50 | |||
| Distance of spindle axis from frame guide ways | mm | 370 | ||
| Revolutions | – number of rates | 12 | ||
| – basic range | r.p.m. | 31,5 – 1400 | ||
| – speed range | r.p.m. | 45 – 2000 | ||
| Bilateral spindle head swivelling | ±45° | |||
| Quill shift out | mm | 75 | ||
| Motor power | kW | 5,5 | ||
| MACHINE | ||||
| Total power input | kVA | 13 | ||
| Weight | kg | 2860 | ||
| Floor space | mm | 2995 x 2000 | ||
| Height | mm | 2100 |

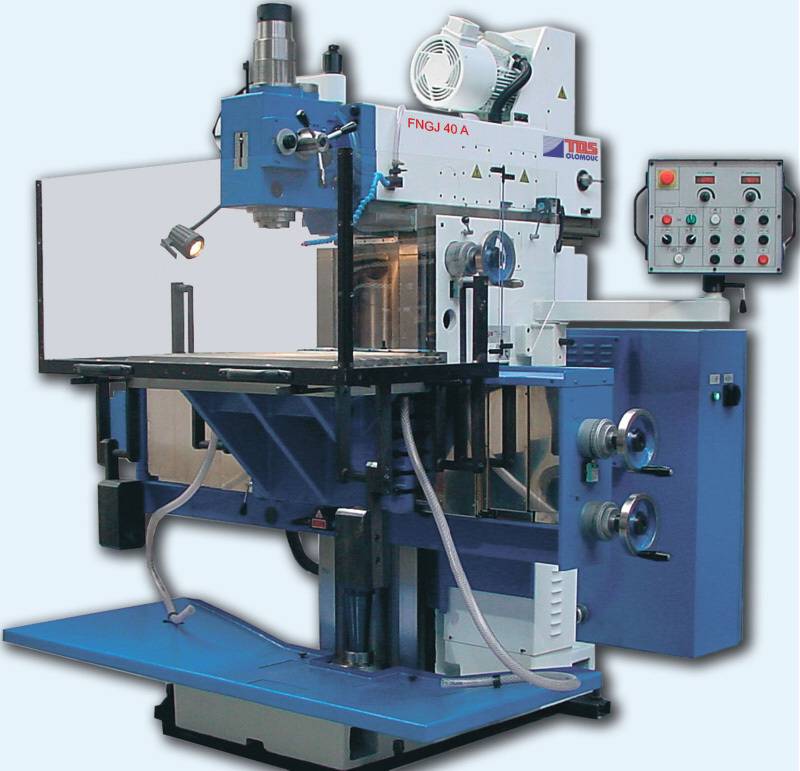

Tool-room milling machine FNGJ 40 A
The machine is designed to cover a wide range of milling, drilling, boring and thread cutting operations on workpieces of to 350 kg weight. This machine is especially suitable for single pieces production at tool-making workshops.
The machine is equipped with horizontal spindle which is fitted in the ram-type spindle head and also with vertical milling head, swing away arm for this vertical milling head and with fixed angle table. The machine is delivere with hand shift-out of the spindle quill. Tilting of spindle is possible in the range ± 90°. The perfect clamping of tools is realized by pneu-hydraulic clamping in both vertical an horizontal spindle.
The stepless spindle speeds are divided into 2 steps with max. 4000 r.p.m. and together with stepless working feeds the machine enables economical machining of varios materials.
Optimal lubrication of guideways is solved by means of lubricaation pump with dosing device. Tools cooling equipment, working light and safety guard of working space are delivered as standard accessories.
Using of the optional equipment from our variety enlarges technological possibilities of the machine.
ADVANTAGES:
- Stepless spindle speeds by means of frequency convertor in 2 steps
- Spindle in the quill with fine and large shift-out
- Stepless feeds in 3 axes by means of a frequency convertor
- Pneumatic-hydraulic tool clamping in the horizontal and vertical spindle (Special execution)
- Hardened guideways
- Simple and comfortable operation, compact layout
- Central lubrication by means of dosing devices
- Wide range of technologic possibilities
- High rigidity, accuracy and reliability of the machine
- Easy maintenance
- Modern design and perfect surface finish with oil-resistant painting
MACHINE EXECUTION:
Standard execution:
- Manual tool clamping
- Fixed angle table 800 x 400 mm
- Vertical milling head
- Frequency convertor in spindle drive
- Fine and large shift-out of quill
- Machine feeds X,Y,Z (stepless adjustable feeds)
- Hand wheel in axes X,Y,Z with measuring dials and with dividing 0,01 mm
- Central lubrication with dosing devices
- Tool cooling equipment
- Electrical equipment for 3 x 400V/50 cycles
- Paint of machine – blue and grey color RAL 5010/RAL9002 Y
- Lighting of working space
- Working space guard
Special execution:
(must be required in the order)
- machine with swiveling and tilting table TU 32N
- Machine with overarm with bearing LFH 32N
- Pneu-hydraulic tool clamping
- Vertical milling head with swing away arm
- Ballscrews in axes X,Y
- Cover of vertical guideways
- Inch execution of machine
- Other electrical standards than 400V/50 cycles
- Machine with other painting
- Machine equipped with digital read-out HEIDENHAIN
Technical data
| Table size | mm | 800×400 | |
| Clamping slots – number | 7 | ||
| – width and spacing | mm | 14×50 | |
| Maximal table load | kg | 350 | |
| Travel – longitudinal | X | mm | manual/machine 640/600* |
| – cross | Y | mm | manual/machine 430/400* |
| – vertical | Z | mm | manual/machine 415/400* |
| Feeds – numbers of feed rates | stepless | ||
| – range | X,Y | mm/min. | 15-1000 |
| – range | Z | mm/min. | 6-400 |
| Rapid traverse | X,Y | mm/min. | 2000 |
| Z | mm/min. | 800 | |
| HORIZONTAL SPINDLE | ISO 40 | ||
| Distance of spindle axis to working surface of fixied table | mm | 158-548 | |
| Revolutions – stepless | r.p.m. | 50-4000 | |
| Revolutions – numbers of rates | 2 | ||
| Spindle speed change | stepless | ||
| VERTIKAL SPINDLE | ISO 40 | ||
| Distance of spindle axis from frame guide ways | mm | 250-650 | |
| Revolutions – stepless | r.p.m. | 50-4000 | |
| Revolutions – number of rates | 2 | ||
| Spindle speed change | stepless | ||
| Spindle swivelling | ±90 ° | ||
| Quill shift out | mm | 80 | |
| Clamping of tools | pneu.-hydraulic. | ||
| MACHINE | |||
| Motor power | kW | 4 | |
| Travel motor power | kW | 1,1 | |
| Max. power input | kVA | 22 | |
| Weight | kg | 2500 | |
| Floor space | mm | 2070×2120 | |
| Height | mm | 2115 |
Toolroom milling machine FNGJ 50 A
The machine is designed to cover a wide range of milling, drilling, boring and thread cutting operations on workpieces of to 350 kg weight. This machine is especially suitable for single pieces production at tool-making workshops.
The machine is equipped with horizontal spindle which is fitted in the ram-type spindle head and also with vertical milling head, swing away arm for this vertical milling head and with fixed angle table. The machine is delivere with hand shift-out of the spindle quill. Tilting of spindle is possible in the range ± 90°. The perfect clamping of tools is realized by pneu-hydraulic clamping in both vertical an horizontal spindle.
The stepless spindle speeds are divided into 2 steps with max. 4000 r.p.m. and together with stepless working feeds the machine enables economical machining of varios materials.
Optimal lubrication of guideways is solved by means of lubricaation pump with dosing device. Tools cooling equipment, working light and safety guard of working space are delivered as standard accessories.
Using of the optional equipment from our variety enlarges technological possibilities of the machine.
ADVANTAGES:
- Stepless spindle speeds by means of frequency convertor in 2 steps
- Spindle in the quill with fine and large shift-out
- Stepless feeds in 3 axes by means of a frequency convertor
- Pneumatic-hydraulic tool clamping in the horizontal and vertical spindle (Special execution)
- Hardened guideways
- Simple and comfortable operation, compact layout
- Central lubrication by means of dosing devices
- Wide range of technologic possibilities
- High rigidity, accuracy and reliability of the machine
- Easy maintenance
- Modern design and perfect surface finish with oil-resistant painting
MACHINE EXECUTION:
Standard execution:
- Manual tool clamping
- Fixed angle table 900 x 500 mm
- Vertical milling head
- Frequency convertor in spindle drive
- Fine and large shift-out of quill
- Machine feeds X,Y,Z (stepless adjustable feeds)
- Hand wheel in axes X,Y,Z with measuring dials and with dividing 0,01 mm
- Central lubrication with dosing devices
- Tool cooling equipment
- Electrical equipment for 3 x 400V/50 cycles
- Paint of machine – blue and grey color RAL 5010/RAL9002
- Lighting of working space
- Working space guard
Special execution:
(must be required in the order)
- machine with swiveling and tilting table TU 32N
- Machine with overarm with bearing LFH 32N
- Ballscrews in axes X,Y
- Pneu-hydraulic tool clamping
- Vertical milling head with swing away arm
- Cover of vertical guideways
- Inch execution of machine
- Other electrical standards than 400V/50 cycles
- Machine with other painting
- Machine equipped with digital read-out HEIDENHAIN
Technical data
| Table size | mm | 900×500 | |
| Clamping slots – number | 9 | ||
| – width and spacing | mm | 14×50 | |
| Maximal table load | kg | 350 | |
| Travel – longitudinal | X | mm | manual/machine 720/700* |
| – cross | Y | mm | manual/machine 530/500* |
| – vertical | Z | mm | manual/machine 515/500* |
| Feeds – numbers of feed rates | stepless | ||
| – range | X,Y | mm/min. | 15-1000 |
| – range | Z | mm/min. | 6-400 |
| Rapid traverse | X,Y | mm/min. | 2000 |
| Z | mm/min. | 800 | |
| HORIZONTAL SPINDLE | ISO 40 | ||
| Distance of spindle axis to working surface of fixied table | mm | 158-548 | |
| Revolutions – stepless | r.p.m. | 50-4000 | |
| Revolutions – numbers of rates | 2 | ||
| Spindle speed change | stepless | ||
| VERTIKAL SPINDLE | ISO 40 | ||
| Distance of spindle axis from frame guide ways | mm | 250-650 | |
| Revolutions – stepless | r.p.m. | 50-4000 | |
| Revolutions – number of rates | 2 | ||
| Spindle speed change | stepless | ||
| Spindle swivelling | ±90 ° | ||
| Quill shift out | mm | 80 | |
| Clamping of tools | pneu.-hydraulic. | ||
| MACHINE | |||
| Motor power | kW | 4 | |
| Travel motor power | kW | 1,1 | |
| Max. power input | kVA | 22 | |
| Weight | kg | 2622 | |
| Floor space | mm | 2170×2120 | |
| Height | mm | 2115 |
For more information about our machines you may contact us by
Phone: +420 587 404 203
e-mail: tos@tos-olomouc.cz
