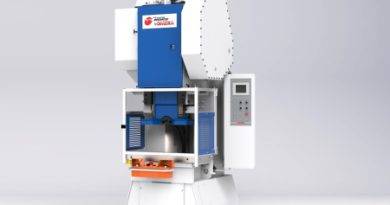

OMERA Straight Side Mechanical Presses

Straight Side Mechanical Presses with

Nominal force up to 20000 kN (2000 tons)

Speed up to 140 rpm

Stroke up to 800 mm

Composite and monolithic mechanical presses are characterised by a high frame stiffness, tested using the Finite Element Method (FEM), and by the precision of the slide guidance system. OMERA range of products provides for single or double connecting rod mechanical presses, with fixed or variable stroke and automatic stroke adjustment. According to the applications and to the pieces to be produced, OMERA develops solutions with kinematics:

• Eccentric
• Soft blanking
• Link drive
• Servo drive

Mechanical presses frame stiffness

The press frame and the slide guide are optimized through the Finite Element Method (FEM).

Slide guiding

Roller guides for a high stiffness and a precise guidance of the slide. OMERA roller guides are designed to allow higher stiffness and an improved load distribution.

Smart Energy Management (SEM)

A Smart Energy Management for the main motors allows energy to be stored in the flywheel while braking, avoiding energy exchanges during the cycle. The SEM improves efficiency, allows motor and drive downsizing and minimizes current peaks.

Quick dye changing

Available on our whole range of mechanical presses:

• Lifting rails on the table
• Movable brackets
• Automatic die clampers

Moving table/bolster

OMERA moving bolster is available on our whole range of monolithic and composite mechanical presses for a more precise die adjustment.

T-track and double moving bolster

T- track and Double moving bolster by OMERA are used to change the die respectively for large presses and presses lines solutions

Straight side monolithic mechanical presses with single connecting rod

Technical data	Model	OPM 120-A	OPM 160-A	OPM 160-SB	OPM 200-A	OPM 200-SB	OPM 250-A	OPM 250-SB	OPM 315-A	OPM 315-SB	OPM 400
Nominale force	kN	1200	1600	2000	2000	2000	2500	2500	3150	2500	4000
Working height at nominal force	mm	5	6,35	6,35	6,35	6,35	6,35	6,35	6,35	6,35	6,35
Working stroke	mm	17 – 144	16 – 220	205	16 – 220	205	16 – 220	205	16 – 220	205	300
Slide adjustment	mm	100	135	150	135	150	135	150	150	150	200
Table dimensions / Housing lateral opening
1000×800	mm	x	x
1200×1000	mm	x	x	x	x	x	x	x	x	x	x
1400×1100	mm		x	x	x	x	x	x	x	x	x
Speed	rpm	30	25	25	28	25	28	25	20	25	15
Adjustable strokes per minute	spm	100	100	75	82	75	82	75	60	75	45

Straight side monolithic mechanical presses with double connecting rod

Technical data	Model	OPM 160	OPM 160-SB	OPM 200	OPM 200-SB	OPM 250	OPM 250-SB	OPM 315	OPM 315- SB	OPM 400	OPM 400-SB	OPM 500	OPM 500-SB
Nominale force	kN	1600	1600	2000	2000	2500	2500	3150	3150	4000	4000	5000	5000
Working height at nominal force	mm	5 – 6,35	6,35	5 – 6,35	6,35	6,35	6,35	6,35	6,35	6,35 – 12,7	6,35	6,35 – 12,7	6,35
Fixed Working stroke*	mm	*200	200	*200	200	*200	200	*250	250	*400	300	*400	300
Slide adjustment	mm	150	150	150	150	150	150	150	150	200	200	200	200
Table dimensions /slide
1600×1200	mm	x
2000×1250	mm	x	x	x	x	x		x	x	x
2500×1250	mm					x	x	x	x	x	x	x
2500×1500	mm									x	x	x
2800×1250	mm										x	x	x
2800×1400	mm											x	x
speed	rpm	20	20	20	20	20	20	20	20	20 – 15	20	15 – 10	15
Adjustable strokes per minute	spm	60	60	60	60	60	60	60	60	60 – 45	60	45 – 30	45

Straight side monolithic composite mechanical presses with two or four connecting rods

Technical data	Modello / Model	OPM 500*	OPM 630*	OPM 800*	OPM 1000*	OPM 1250*
Nominale Force	kN	5000	6300	8000	1000	1250
Working height at nominal force	mm	12,7 – 18	12,7 – 18	12,7 – 18	12,7 – 18	12,7 – 20
Max. Fixed Working stroke	mm	400	400	400	400	400
Slide adjustment	mm	300	300	300	300	300
Table dimensions / slide
3000×1250	mm	x
3200×1400	mm	x	x
3750×1500	mm		x	x	x	x
4000×1500	mm		x	x	x	x
4500×1500	mm			x	x	x
4800×1750	mm				x	x
speed	rpm	10 – 15	10 – 15	10 – 15	10 – 15	10 – 15
Adjustable strokes per minute	spm	30 – 45	30 – 45	30 – 45	30 – 45	30 – 45
