CNC horizontal boring milling machines table type in 4 model ranges: WFC 10 (L), WFT 11 (L), WFT 13 (R,L), WFT 15 (R,L)
Working dimensions 1250 x 1250 x 1250 mm up to 5000 x 3500 x 3300 mm
Spindle diameter 100-150mm
Table capacity 3 tons up to 40 tons
Guideways Box or Linear (L)
With or without Ram movement (R)
CNC Heidenhain, Siemens, Fanuc
WFC
WFC is economical, modern and compact solution.
Continuously controlled machine with cross table and stationary column, ideal for machining pieces of up to 5 tons.
- Machine suitable also for serial production, for shops with limited floor space.
- Possible also in version with Linear guide ways (WFC 10 L).
- CNC rotary table with two servomotors
| Fermat WFC | Units | WFC 10 | WFC 10 L |
|---|---|---|---|
| Spindle diameter | mm | 100 / 110 | |
| Spindle taper | SK 50 (ISO50) / BT50 / CAT50 / BIG+ | ||
| Spindle speed (max.) | rpm | 4000 | |
| Main Power Heidenhain or SIEMENS CNC (S1/S6) | kW | 19,5 / 29,3; 31 / 46,5 | |
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm | 951 / 1426; 1416 / 2124 | |
| Main Power FANUC CNC (S1/S3) | kW | 22 / 26; 30 / 37 | |
| Max. Torque FANUC CNC (S1/S3) | Nm | 2362 / 2873; 2713 / 3989 | |
| X-axis Cross Travel of Table | mm | 1250 / 2000 | |
| Y-axis Vertical Travel of Headstock | mm | 1250 / 1700 / 2000 | 1400 / 1850 / 2150 |
| Z-axis Longitudinal Travel of Table | mm | 1250 | 1 500 |
| W-axis Spindle Travel | mm | 730 | |
| Rapid Feed X, Y | mm/min | 8000 | 14000 (opt. 30000) |
| Rapid Feed Z, W | mm/min | 8000 | 14000 (opt. 30000) |
| Rapid Feed B | rpm | 2 (opt. 4) | 2 (opt. 10) |
| Max. Table Load | kg | 3000 / 5000 | |
| Table Size | mm | 1000 x 1120 / 1250 x 1400 / 1250 x 1800 / 1400 x 1600 |

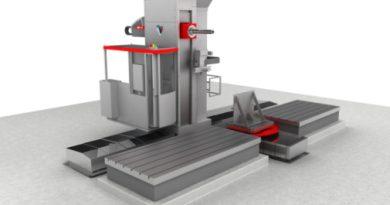

WFT
Fermat WFT is the most popular FERMAT table-type horizontal boring mill, for high-performance machining with maximum utilization of accessories, automatic milling heads and facing heads for efficient machining of workpieces of up to 40 tons.
| Fermat WFT | unit | WFT 11 | WFT 13 | WFT 13R | WFT 15 | WFT 15R | WFT 15-1000 |
|---|---|---|---|---|---|---|---|
| Spindle diameter | mm | 100/110 | 130 | 150 | |||
| Spindle taper | SK 50 (ISO50) / BT50 / CAT50 / BIG+ | SK 50 (ISO50) / BT50 / CAT50 / BIG+ | SK 50 (ISO50) / BT50 / CAT50 / BIG+ | ||||
| Spindle speed (max.) | rpm | 4000 | 3000 (opt. 4000) | 3000 (opt. 4000) | |||
| Main Power HEIDENHAIN or SIEMENS (S1 /S6 -40%) | kW | 19,5 / 29,3; 31 / 46,5 | 41 / 61,5; 53 / 77,9 | 41 / 61,5; 53 / 77,9 | 58 / 88 | ||
| Max. Torque Heidenhain or SIEMENS (S1 / S6-40%) | Nm | 951 / 1426; 1416 / 2124 | 2099 / 3149; 2713 / 3989 | 2099 / 3149; 2713 / 3989 | 2625 / 3990 | ||
| Main Power CNC FANUC (S1 / S3-60%) | kW | 22 / 26; 30 / 37 | 37 / 45; 53 / 62 | 37 / 45; 53 / 62 | 60 / 75 | ||
| Max. Torque FANUC (S1 / S3-60%) | Nm | 823 / 971; 1370 / 1692 | 2362 / 2873; 2713 / 3989 | 2362 / 2873; 2713 / 3989 | 2263 / 2829 | ||
| X-axis Cross Travel of Table | mm | 2000 / 3000 | 2000 / 3000 / 4000 / 5000 | 2000 / 3000 / 4000 / 5000 | |||
| Y-axis Vertical Travel of Headstock | mm | 1250 / 1700 / 2000 | 2000 / 2500 / 3000 / 3500 / 4000 | 2000 / 2500 / 3000 / 3500 | |||
| Z-axis Longitudinal Travel of Column | mm | 1250 / 1700 | 1500 / 2000 / 2500 / 3000 | 1500 / 2000 | |||
| W-axis Spindle Travel | mm | 730 | 800 | 800 | 1000 | ||
| Ram stroke in V-axis | mm | x | x | 700 | x | 700 | x |
| Rapid Feed X, Y | mm/min. | 8000 | 15000, 12000 | 12000, 12000 | |||
| Rapid Feed Z, W | mm/min. | 8000 | 8500, 10000 | 8500, 10000 | |||
| Rapid Feed B | rpm | 2 (opt. 4) | 2 (opt. 5) | 2 (opt. 5) | |||
| Max. Table Load | kg | 10 000 | 40 000 | 40 000 | |||
| Table Size | mm | 1200 x 1200 / 1200 x 1400 / 1400 x 1600 / 1400 x 1800 / 1600 x 1600 / 1600 x 1800 | 1600 x 1800 / 1800x 2200 / 1800 x 2600 / 2000 x 2400/ 2500 x 2500 / 2000 x 3000 | 1600 x 1800 / 1800x 2200 / 1800 x 2600 / 2000 x 2400/ 2500 x 2500 / 2000 x 3000 |
Heads and accessories
