Vertical panel saws series Piranha, Orca, Ultra

Piranha

This versatile panel saw offers all the possibilities for easy cutting of panel material. Various components, such as the automatic moving back panel, the length stop and the midway fences, make this a compact yet versatile sawing machine. The automatic moving back panel included as standard prevents you from sawing into the rear panel. The unique aspect of the Harwi panel saws is that the zero point is in the middle of the machine, so you can work to the left or right of the zero point as you prefer without any trouble. These are advantages that allow for work flexibility.

The Harwi Piranha panel saw contains two midway fences for processing small sheet material at a pleasant working height. The ergonomic saw handle ensures that you work flexibly and lightly without having to bend down. The Piranha is an efficient, ergonomic sawing machine with great attention paid to the well-being of your operators.

The Harwi Piranha is available in two versions, specified according to the dimensions of the material to be processed.
The Piranha 1250, 1550.

Piranha Basic

Inclusive

Motor 3 kW
Moving backpanel
Cutting depth 55 mm
Carbide tipped saw blade Ø 250 mm
Length stop analog
Panel mover
Midway fences 2x
24VDC power supply for extraction unit

Optional

Transport rollers foot operated

Piranha Premium

Inclusive

Motor 3 kW
Moving backpanel
Cutting depth 55 mm
Carbide tipped saw blade Ø 250 mm
Length stop analog
Electro clamping horizontal
Panel mover
Stops for horizontal cuts
Reiteration stop
Transport rollers foot operated
Midway fences maximum
TRK dust extraction horizontal
24VDC power supply for extraction unit

Orca

The Harwi Orca is a powerful panel saw with an IE3 energy-efficient 4 kW motor that drives the saw blade indirectly. The indirect drive of this vertical panel saw provides a transmission of 5000 rpm. A good choice when you are dealing with intensive sawing processes and high accuracy. The combination of the robust frame structure and the stable saw beam ensures that the Harwi Orca always makes a perfect cut. Because of its low-maintenance nature and long service life, interior finishers and carpentry factories have been fond of our Orca panel saws for years. The Harwi Orca is equipped as standard with a reiteration stop and stops for horizontal cuts. This ensures that the Harwi Orca vertical panel saw can perform repetitive sawing work quickly and efficiently. The midway fencees and ergonomic saw handle ensure a good operator posture. This makes the work of your employees efficient and healthy.

The Harwi Orca is available in four versions, specified according to the dimensions of the material to be processed.
The Orca 1250, 1550, 1850 and 2150.

Orca Basic

Inclusive

Motor 4 kW
Moving backpanel
Cutting depth 55 mm
Carbide tipped saw blade Ø 250 mm
Electro clamping horizontal
Panel mover
Midway fences 2x
Length stop analog
Reiteration stop
24VDC power supply for extraction unit

Optional

Transport rollers foot operated

Orca Premium

Inclusive

Motor 4 kW
Moving backpanel
Cutting depth 55 mm
Carbide tipped saw blade Ø 250 mm
Electro clamping horizontal
TRK dust extraction horizontal
Panel mover
Midway fences maximum
Transport rollers foot operated
Length stop analog
Reiteration stop
24VDC power supply for extraction unit

Optional

Digital read-out
Scoring saw

Orca Pro

Inclusive

Motor 4 kW
Moving back panel
Cutting depth 55 mm
Carbide tipped saw blade Ø 250 mm
Electro clamping horizontal
Digital read-out
Panel mover
Midway fences maximum
Transport rollers pneumatic
TRK dust extraction horizontal
Length stop analog
Scoring saw
Reiteration stop
24VDC power supply For extraction unit

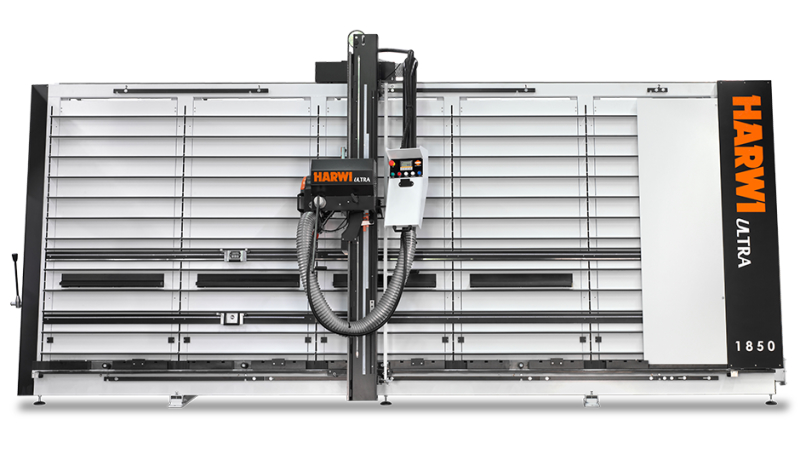

Ultra

The Harwi Ultra vertical panel saw represents the very best that Harwi has to offer. A unique extraction system, ergonomic saw arm and a 4 kW motor that provides a transmission of 5000 rpm via a drive belt. In short, the perfect vertical panel saw for efficient and safe industrial use. The unique extraction system of the Harwi Ultra provides dust extraction with values that are far below the national and international standards. The cylinder control unit provides a targeted airflow of the extraction system behind the sheet material. In addition, the saw dust extraction system removes dust from the front of the sheet material. Working completely dust-free guarantees the health of your employees. The special frame of the Harwi Ultra vertical panel saw is welded from a single piece and is therefore extremely robust. The high speed of 5000 rpm not only makes the vertical panel saw highly suitable for processing wood, but also for plasterboard and cementitious boards. The ergonomic sawing arm facilitates high efficiency and productivity.

The Harwi Ultra is available in three versions, specified according to the dimensions of the material to be processed.
The Ultra 1550, 1850 and 2150.
